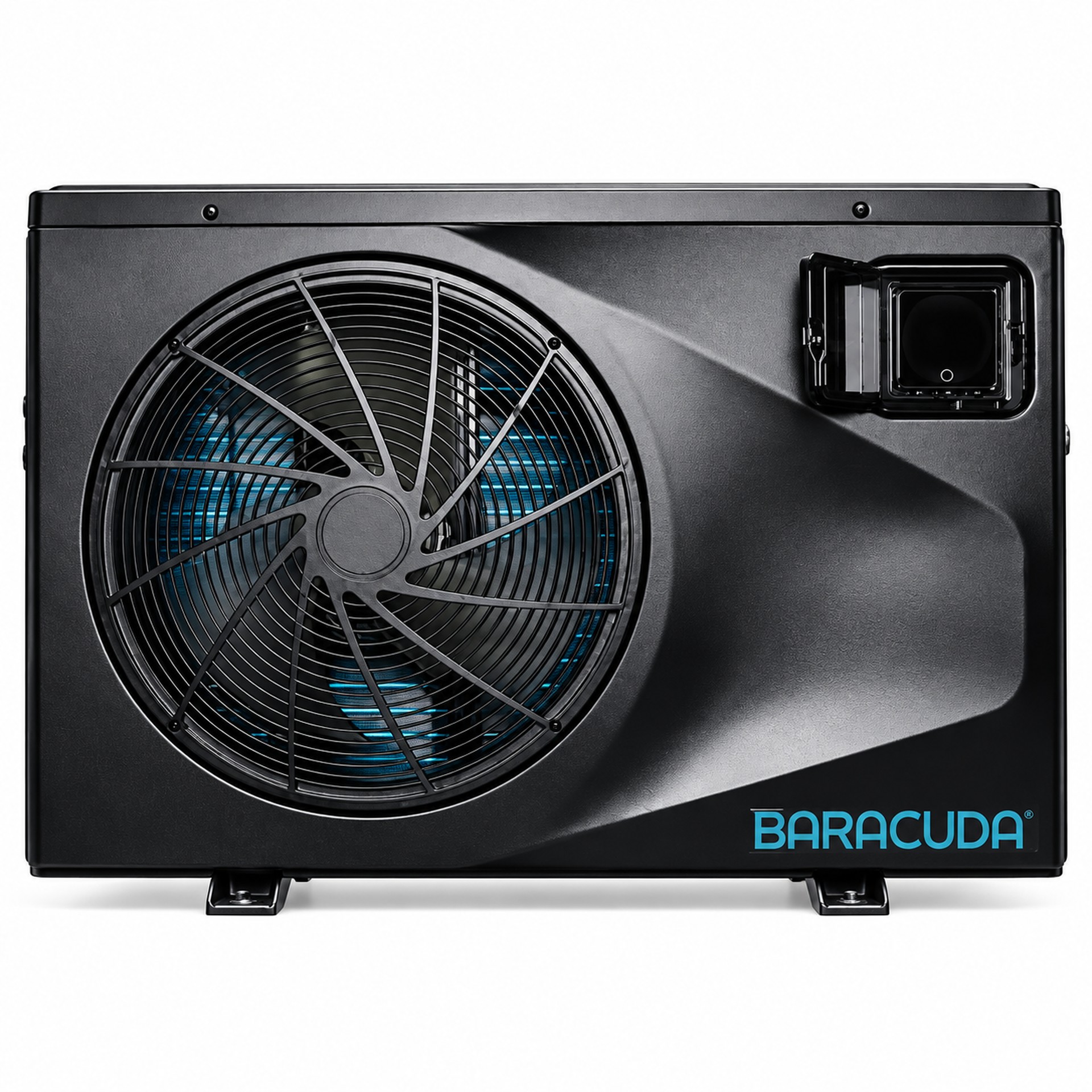

Baracuda Neo Inverter Heat Pump
Efficient inverter pool heating with a certified A+ energy rating, R32 refrigerant, smart LCD touch control and WiFi smartphone operation. The Baracuda Neo range offers quiet performance, COP in excess of 12, solar-ready operation and models for pools up to 100 m³.
The Baracuda Neo Inverter Heat Pump range provides efficient, quiet and convenient pool heating for residential swimming pools. Inverter technology adjusts output to suit demand, helping maintain comfortable water temperatures while reducing unnecessary energy use.
Key Features
- Certified A+ energy rating
- R32 environmentally friendly refrigerant gas
- Smart LCD touch display for easy operation
- COP in excess of 12
- Unique fan blade design to further reduce typical wind noise
- Designed for low ambient-temperature operation
- WiFi control via smartphone app
- Solar ready
- 1PH 230V / 50Hz power supply
- Rotary compressor
- 1 × horizontal fan
- D50 water connection with unions
Model Overview
| Model | Stock Code | Heating Capacity at 27°C | Heating Capacity at 15°C | Net Weight | Packing Dimensions (L × W × H) |
|---|---|---|---|---|---|
| HP15 | 640-0610 | 35 kW | 20 kW | 40 kg | 970 × 410 × 760 mm |
| HP20 | 640-0611 | 40 kW | 30 kW | 42 kg | 970 × 410 × 760 mm |
| HP30 | 640-0612 | 50 kW | 40 kW | 43 kg | 970 × 410 × 760 mm |
| HP35 | 640-0613 | 60 kW | 45 kW | 44 kg | 970 × 410 × 760 mm |
| HP40 | 640-0614 | 70 kW | 50 kW | 58 kg | 1130 × 485 × 910 mm |
| HP50 | 640-0615 | 80 kW | 60 kW | 60 kg | 1130 × 485 × 910 mm |
| HP60 | 640-0616 | 100 kW | 80 kW | 85 kg | 1210 × 515 × 1010 mm |
Pool Size Guide
Under the specified 27°C air test conditions with a solar cover in use, the range supports maximum pool volumes from 35 m³ for the HP15 up to 100 m³ for the HP60. Under the specified 15°C air test conditions, maximum pool volumes range from 20 m³ to 80 m³.
Refrigerant: R32
Water connection: D50 with unions
Ambient air operating temperature in the technical table: -7°C to 43°C
